Fiber Optic Launch Box Dummy Fiber SM G.652D 1km/2km connectors OTDR Launch Cable G.652

FOB Reference Price:Get Latest Price
$109.00 - $139.00 / Piece | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
YOFC
Model Number:
SM G652D
product name:
Fiber Optic Launch Box Dummy Fiber SM G.652D OTDR Launch Cable G.652
Fiber:
Single Mode
Fiber standard:
G.652D
delivery length:
1km/2km
Connectors:
as per request: SC FC LC etc
Dimensions:
28X15.5X8CM
Package Weight:
0.786kg
packed:
yellow plastic box
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
package by carton
package weight: 0.6kg
Contact name: veronica zhao
Shanghai Govo Telecom Co.,Ltd
skype ID:govochina
Whatsapp/wechat: 0086 1 3 7 8 8 9 1 3 2 6 7
Port
Shanghai,China
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 5 To be negotiated

 Fiber Optic Launch Box Dummy Fiber SM G.652D 2km connectors OTDR Launch Cable G.652

Delivery length:  1km/2km/piece

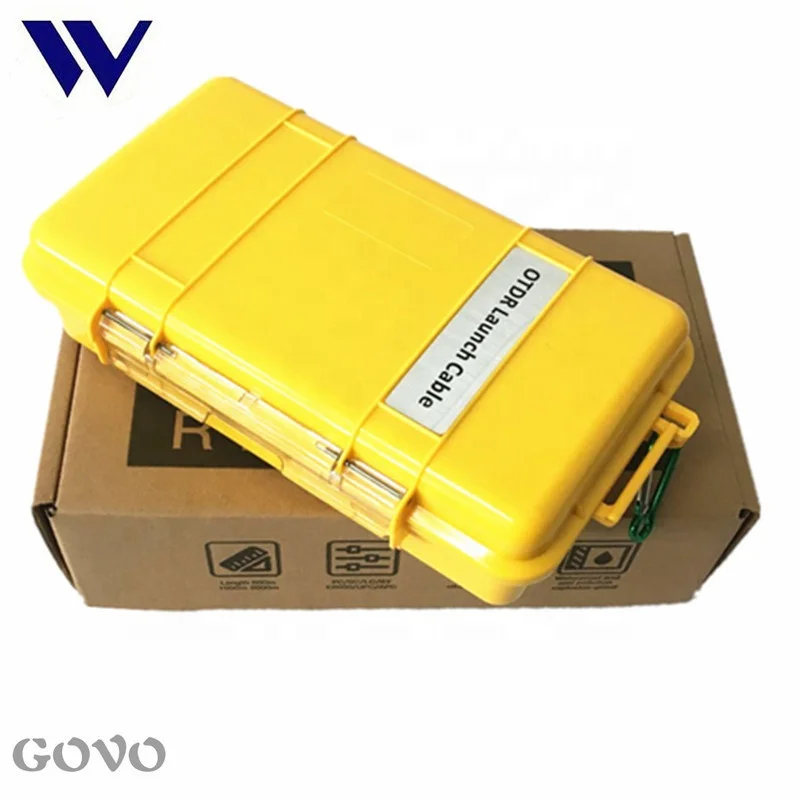

OTDR launch box.2



Product Description

OTDR Launch Cables are designed to be used in conjunction with an OTDR to measure complete link loss of a fiber. They are also known as pulse suppressor cables, launch cords, launch leads, receive cables or fiber rings. An OTDR launch cable, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection.  A fiber ring serves as both a launch cable and a receive cable.





Specifications





Attenuation

@1310nm

≤0.35dB/km

@1550nm

≤0.21dB/km

Attenuation vs wavelength

@1310nm

1285~1330nm

≤0.03dB/km

@1550nm

1525~1575nm

≤0.02dB/km



The OTDR Launch cables can be added with certain connectors, such as FC-FC,SC-SC,FC-SC ST-ST etc.

Please send us your requirements for the connectors you need.

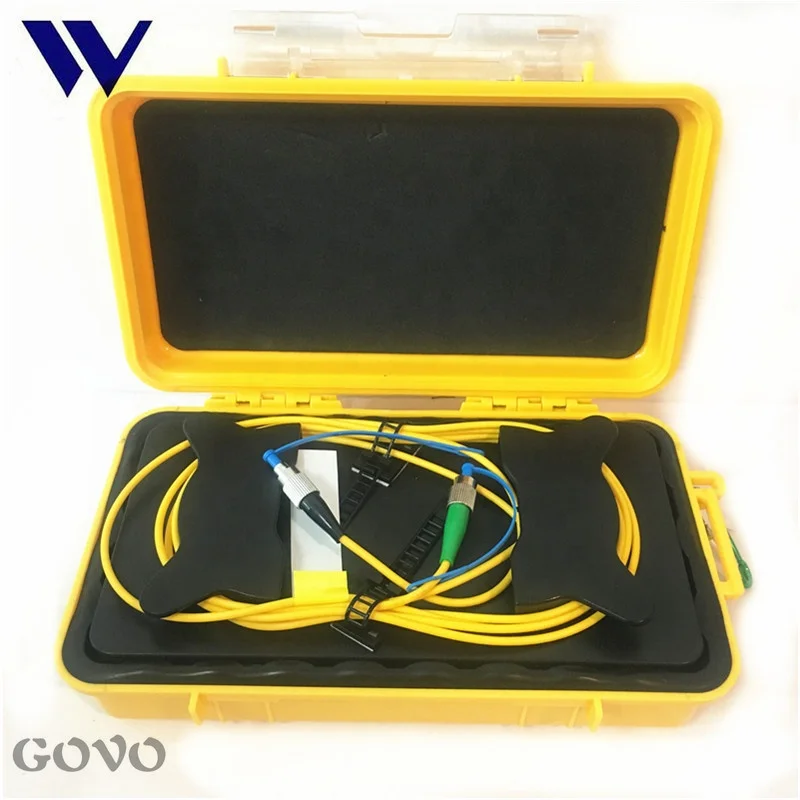

OLC FC UPC-FC UPC.3OLC FCUPC-FC APC

Connectors: FC/UPC-FC/UPC                             Connectors:    FC/UPC-FC/APC

OLC LC APC-LC APC.2OLC LC UPC-LC UPC.2

Connectors: LC/APC-LC/APC                                    Connectors:   LC/UPC-LC/UPC

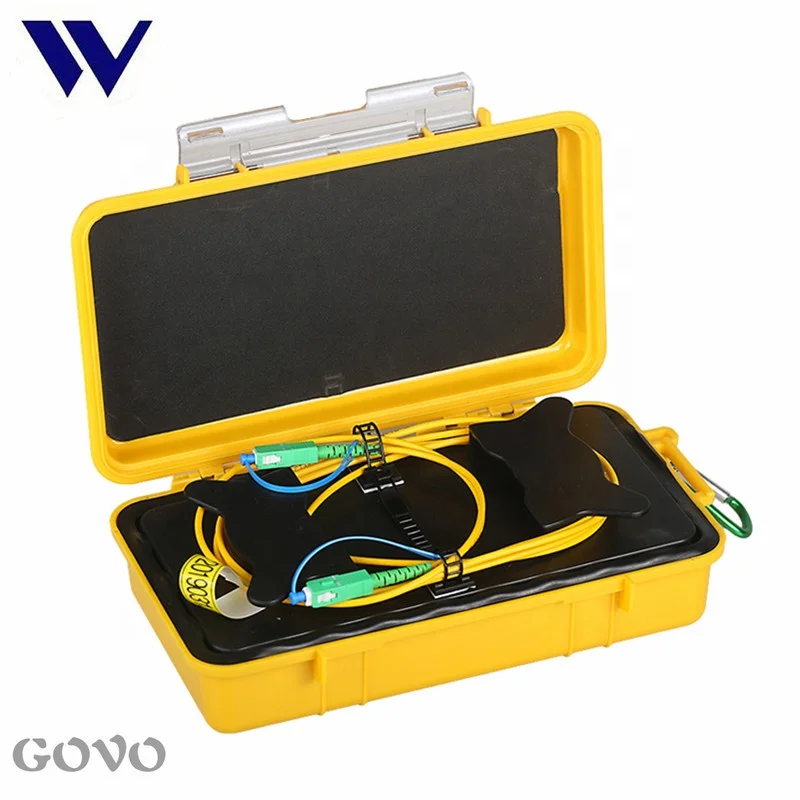

OLC LC UPC-FC UPC.1OLC SC APC-LC APC.2

Connectors: LC/UPC-FC/UPC                                    Connectors: SC/APC-LC/APCOLC SC APC-SC APC.2OLC SC UPC-SC UPC.1

Connectors: SC/APC-SC/APC                                        Connectors: SC/UPC-SC/UPC

OLC FCUPC-FC APCOLC SC UPC-FC UPC.3

Connectors: FC/UPC-FC/APC                             Connectors: FC/UPC-SC/UPC





  Ordering information

Standard Delivery Length:  500m/1km/2km/piece

Part No.

Description

GW-Fiber-BOX-SM05

 SM G652D, 500M,

 Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC,

 FC/APC, LC/UPC, LC/APC optional

GW-Fiber-BOX-SM10

 SM G652D, 1KM,

 Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional

GW-Fiber-BOX-SM20

 SM G652D, 2KM,

 Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,

 LC/UPC, LC/APC optional

GW-Fiber-BOX-MM05

 MM (62.5/125um or 50/125um), 500M,

 Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

GW-Fiber-BOX-MM10

 MM (62.5/125um or 50/125um), 1KM,

 Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

GW-Fiber-BOX-MM20

 MM (62.5/125um or 50/125um), 2KM,

 Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

GW-Fiber-BOX-SM705

 SM G657A, 500M,

 Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,

 LC/UPC, LC/APC optional

GW-Fiber-BOX-SM710

 SM G657A, 1KM,

 Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC, LC/UPC, LC/APC optional

GW-Fiber-BOX-SM720

 SM G657A, 2KM,

 Connector; FC/UPC, SC/UPC, ST/UPC, SC/APC, FC/APC,

 LC/UPC, LC/APC optional

GW-Fiber-BOX-OM305

 OM3, 500M,

 Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

GW-Fiber-BOX-OM310

 OM3, 1KM,

 Connector; FC/PC, SC/PC, ST/PC, LC/PC optional

GW-Fiber-BOX-OM320

 OM3, 2KM,

 Connector; FC/PC, SC/PC, ST/PC, LC/PC optional



Main Features



  • Compact, light weight and easy to carry

  • Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration

  • Compound Latch for positive seal and easy opening with locking feature Non¬metal construction will not dent, corrode, or conduce electricity

  • the case can house up to 2,000 meters of fiber

  • Auto Purge Valve for changes in altitude and temperature

  • Various fiber options; single-mode, multimode,OM3 etc

  • Various connector options; FC/UPC, SC/UPC, ST/UPC, SC/APC,FC/APC, LC/UPC, LC/APC etc

  • Delivery length:500M,1KM, 2KM ( custom )

  •  Loss less than or equal to 0.5dBm for 1km

  •  Excellent sealing performance, water and dust proof allowing the unit to work in any environment

Standard Package

 OTDR launch box.1

OTDR Launch cable box for 3KM fiber :







we also supply the OTDR launch cable in roll type.

  YOFC BRAND BARE FIBER

 YOFC bare fiber.3

CORNING BRAND BARE FIBER



Corning bare fiber.4
